For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System

For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System

  • Mettre en évidence

    UL listed fire sprinkler head

    ,

    sidewall pendant sprinkler fitting

    ,

    fire protection upright spray pipe

  • Nom du produit
    arroseuse du feu
  • Matériel
    Laiton
  • Taper
    Type suspendu, type à paroi latérale, type debout
  • Diamètre nominal (millimètres)
    1/2" ou 3/4"
  • Thread de connexion
    TNP. Fil standard britannique
  • Couleur des ampoules en verre
    Rouge
  • Débit
    K = 80
  • ampoule en verre
    5 vis de compression
  • Nom de marque
    jvante
  • Numéro de modèle
    JAT
  • Quantité de commande min
    500
  • Prix
    1.5$ +pices
  • Délai de livraison
    5 - 30 jours
  • Conditions de paiement
    LC, D/A, D/P, T/T, Western Union, MoneyGram
  • Capacité d'approvisionnement
    500+pièces+30jours

For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System

Product Name

Fire Sprinkler
Material Brass

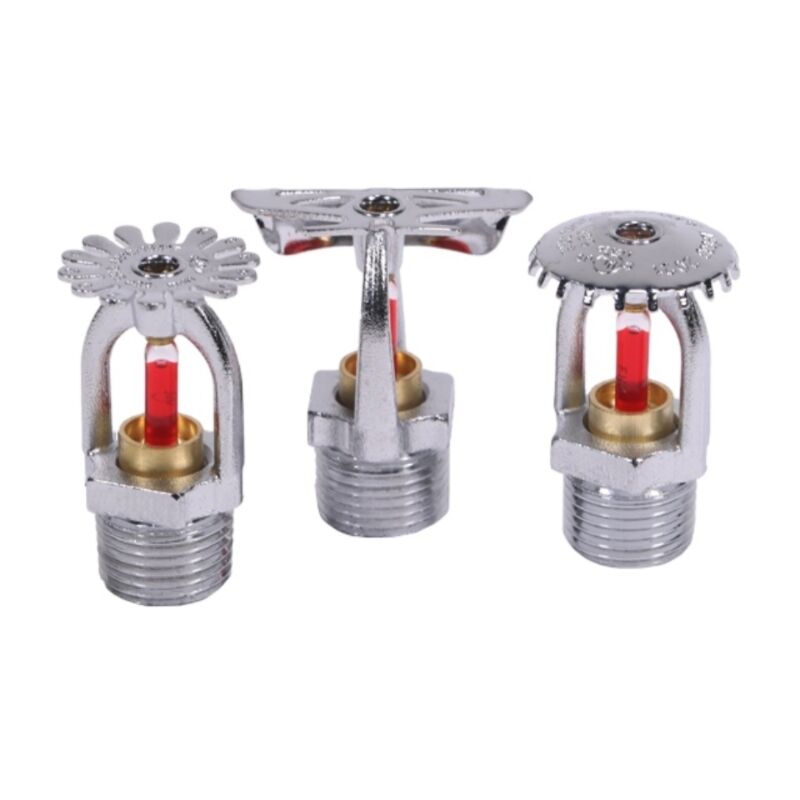

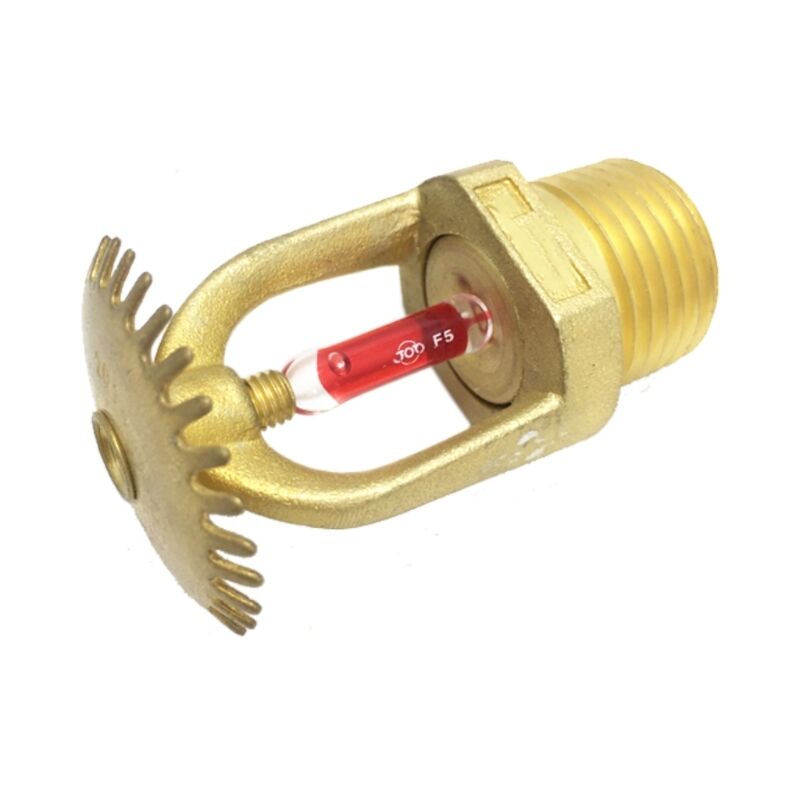

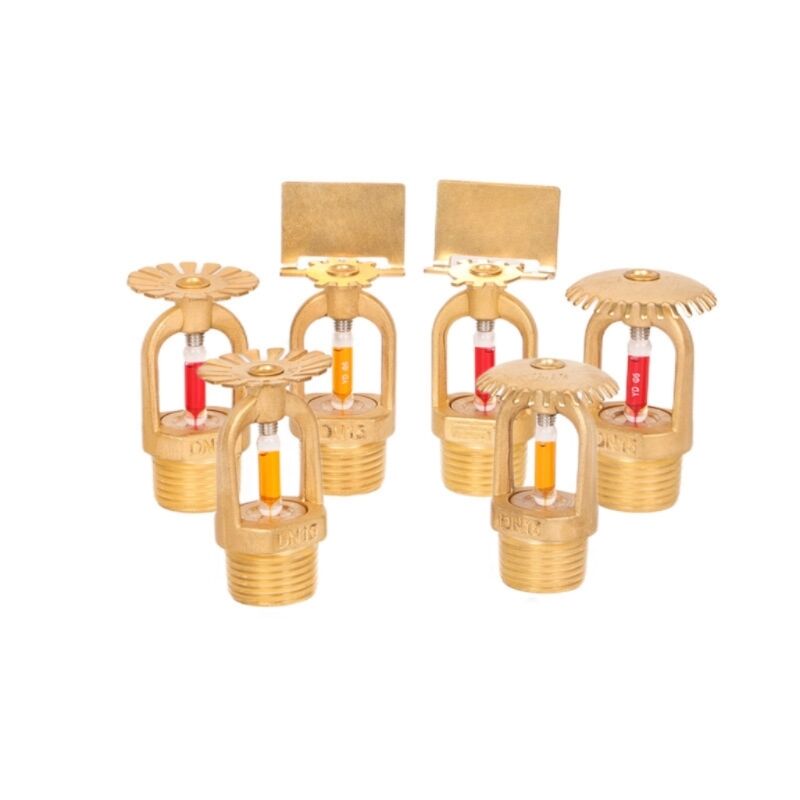

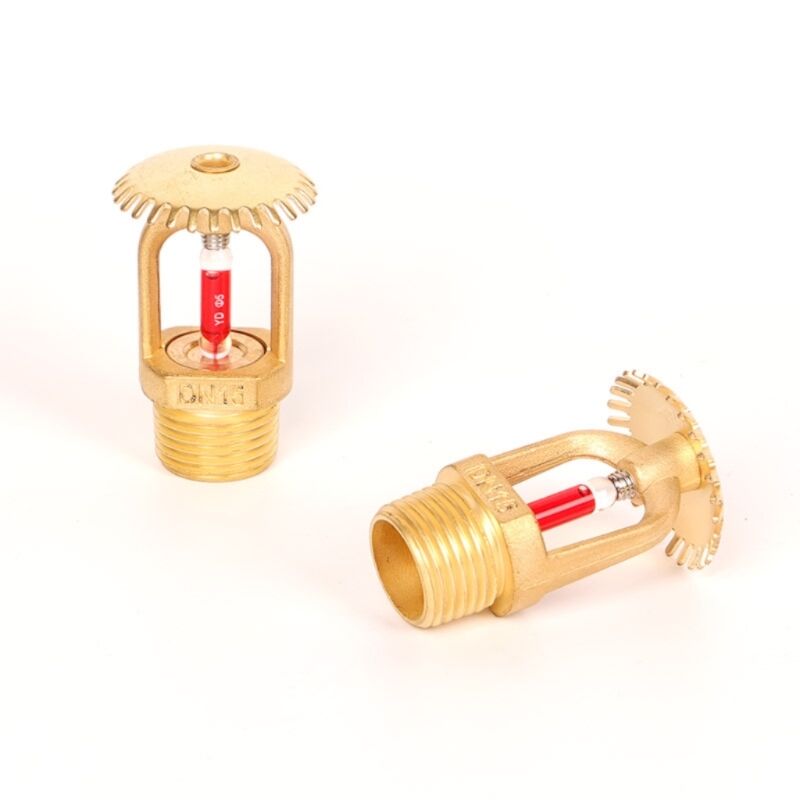

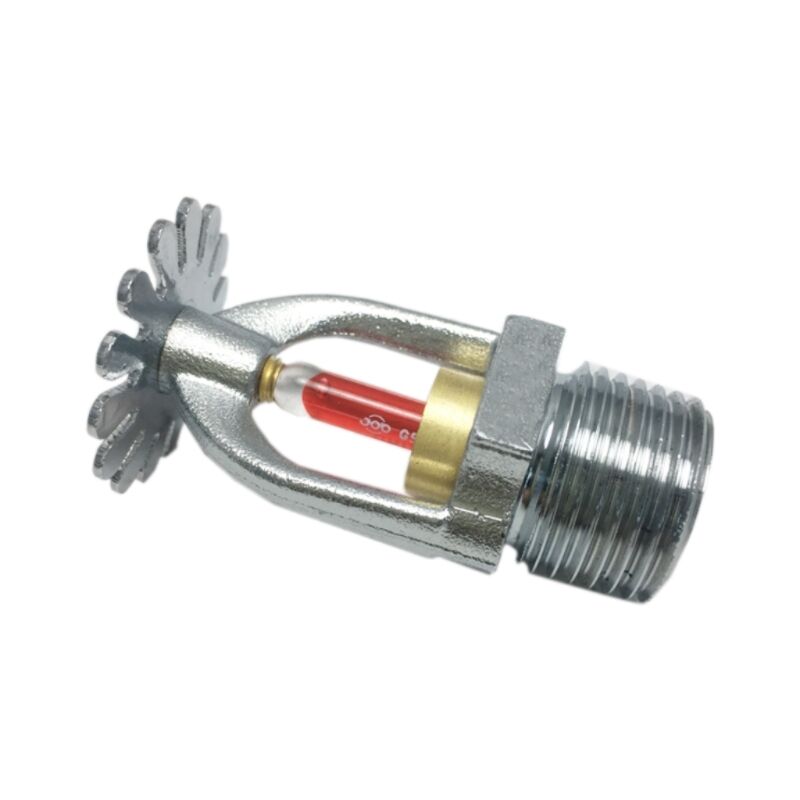

Type Pendant type, Side wall type, Standing type
Nominal Diameter (mm)  1/2" or 3/4"
Connection Thread NPT. British standard thread
Glass Bulb Color Red
Temperature Rating 135°F/(57°C) 155°F/(68°C) 175°F/(79°C) 200°F/(93°C) 286°F/(141°C)
Flow Rate K = 80
Glass Bulb 5 compression screws
Finish Chrome plating, natural brass, polyester coating
Test 3.2 megapascal sealing test pressure, 100% pass rate after testing
Response Rapid response/Standard response

For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 0For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 1For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 2For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 3For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 4For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 5For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 6For UL Listed Fire Protection Sidewall Pendant Upright Spray Pipe Fitting Fire Fighting Sprinkler Head for Fire Sprinkler System 7

RFQ

Q1: How do you ensure the quality of your products?

A1: All our fire extinguishers, fire blankets and other firefighting equipment are manufactured in accordance with international standards and undergo strict quality inspection procedures. We use high-quality materials and advanced production technologies to ensure that each product meets the highest safety and performance standards.

Q2: Do you support customized services?

A2: Yes, we offer comprehensive customized services. We can adjust the size, materials, color and other parameters of the products according to your specific needs to meet the requirements of different markets.

Q3: What is the general delivery time?

A3: The delivery time depends on the specific details and quantity of the order. Generally, the delivery time for standard products is 1 to 4 weeks, while custom-made products may require additional time for design and production.

Q4: What does your after-sales service include?

A4: Our after-sales service includes installation and usage guidance. No matter where you are, we are committed to providing you with prompt and effective after-sales support.

Q5: How can I obtain a quotation?

A5: Please provide your specific requirements through our official website or contact the sales team directly, including product type, specifications, quantity, and any special requirements. We will provide you with a detailed quotation as soon as possible.
